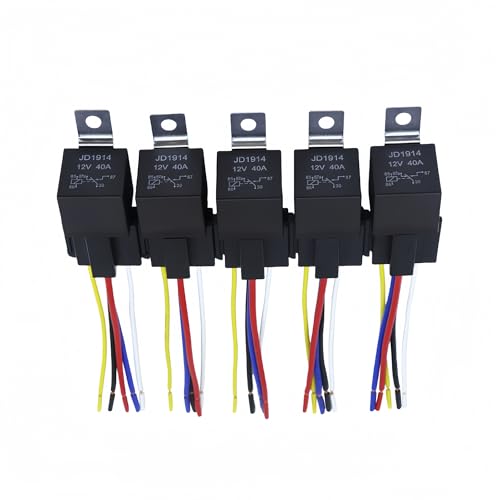

Losato JD1914 12V 40/30A 5-Piece Automotive Relay with Interlocking Harness Receptacle Holder, 5-pin Relay Connector, for Cars and Trucks-5 Pack

Brand: Losato

Features:

• [Product Description]: 5-pin relay connector, 12-volt direct current (maximum 14 volts); 5-pin SPDT (single-pole double-throw) all-copper coil relay, contact working voltage 12 volts, coil power 1.8 watts, rated current 30 amperes, with a high switching capacity of up to 40 amperes.

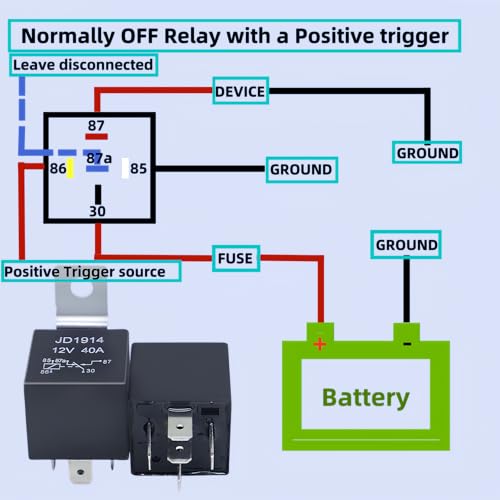

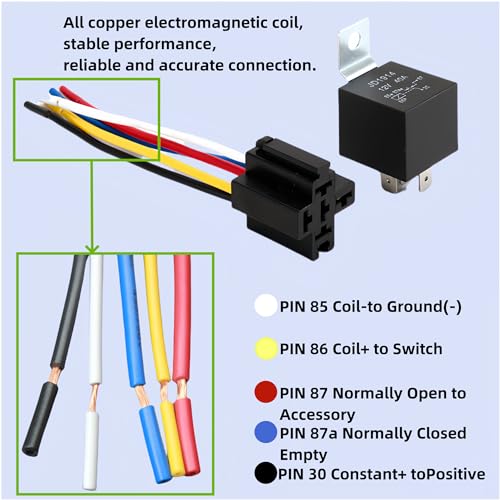

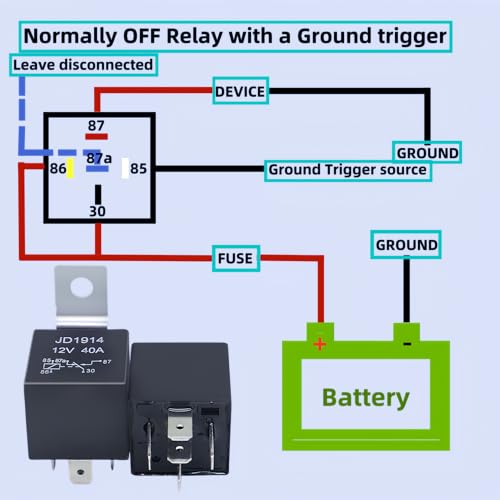

• [Wiring harness specifications]: Black - VDC(30), white - ground (85), red - output N/O(87), yellow - trigger (86), blue - output N/C (87a).

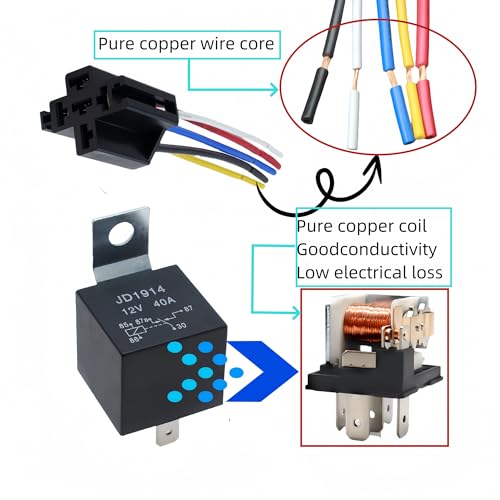

• [Material] automotive relay adopts pure copper core cable, silver alloy contact, strong conductivity, better stability, relay kit is made of high-grade flame retardant material to ensure safe use and long service life.
• [Easy installation] : The automobile relay socket has a fixed metal hole, easy installation, as long as you can operate according to the wiring diagram
• [Service Guarantee] No reason to return within 30 days, 1-year warranty service; If you are not satisfied with this product, please contact us for an exchange or refund. We hope you will enjoy excellent service.

UPC: 717044695948

EAN: 0717044695948

Package Dimensions: 7.9 x 1.4 x 1.3 inches
